How do you determine the most suitable materials for your furniture and consumer goods products, especially considering sustainability and durability?
I find that combining the material research that I do with using a tried, tested and true set of priorities produces good results. I start with Life Cycle Analysis (LCA) studies, which reveal the true environmental impact of materials over their lifespan. These studies often surprise me, challenging common assumptions about sustainability.
LCAs are insightful, but I dig deeper. For example, if an LCA compares single-use plastic to paper only on carbon footprint, I also consider water usage, reusability, material origins, and the chemicals involved in production. When suppliers provide comprehensive data through the Material Sustainability Index, it significantly influences my choices.
My compass: I prioritise materials based on the three R’s: reduce, reuse, recycle. It sounds really simple, but this principle, originating in the 1970s, remains highly relevant today. Many people don't realise that the three R’s are intentionally ordered by priority. While recyclability is important, reducing and reusing materials come first. This hierarchy can be complex. For instance, reducing material usage might compromise product durability or impact its perceived value, which in turn affects how long people use the product.
The selection of materials transcends graphs and data. It is an exploration of human psychology and behaviour, understanding how design influences the life cycle of an object. Cultural nuances, whether global, national, or audience-specific, weigh heavily in my decisions. Each pro has its con, each material has several hidden complexities. The decision-making process involves many interdependent factors, making it the most intricate part of my design process.
In essence, choosing materials is about evaluating their environmental impact, durability, and how people will perceive and use them. It’s a multi-faceted decision blending technical analysis with insights into human behaviour and cultural context, making it both challenging and rewarding.
What were the key challenges in designing the Beba Chair with your daughter, and how did you overcome them to ensure both functionality and ease of upholstery removal?

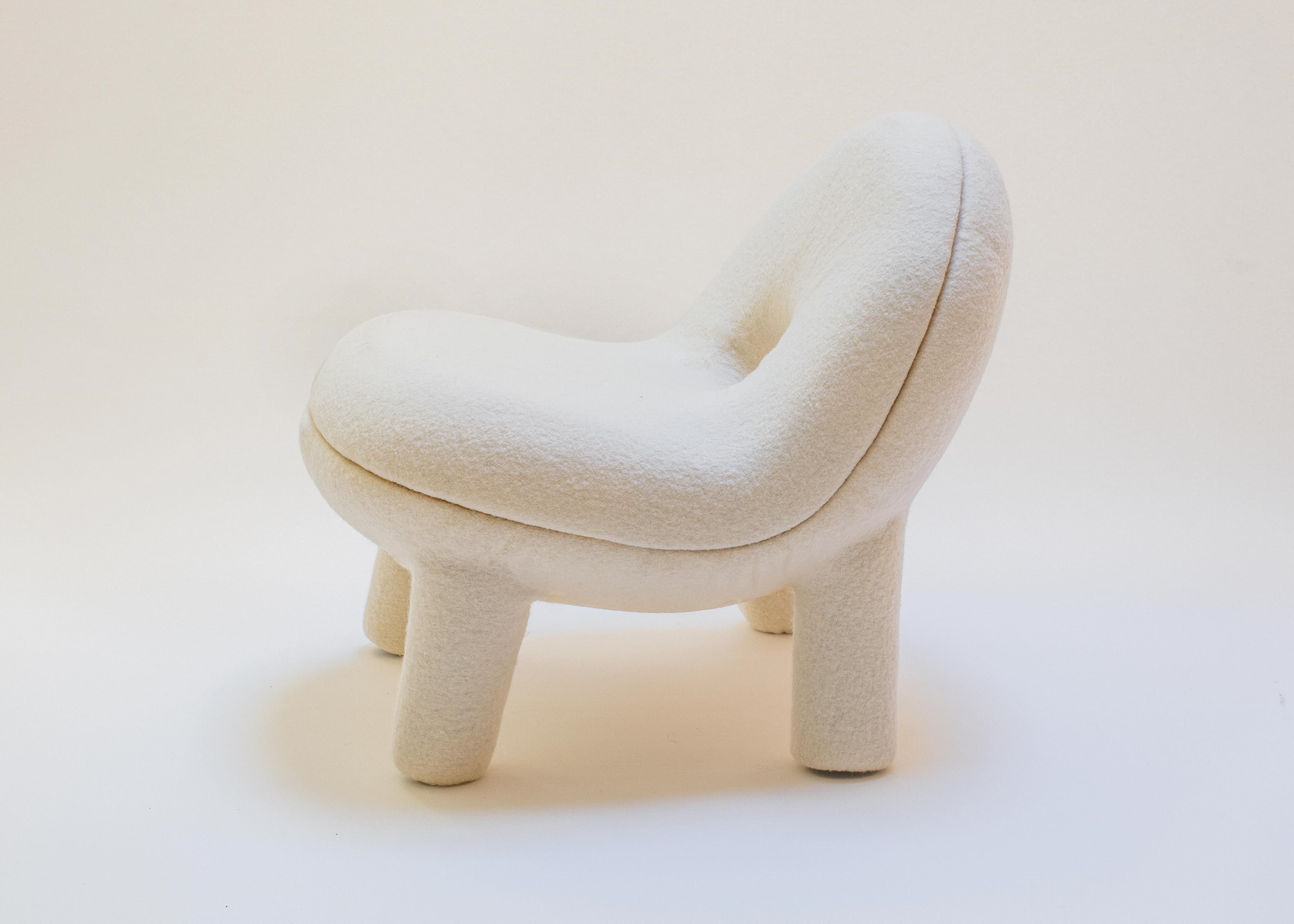

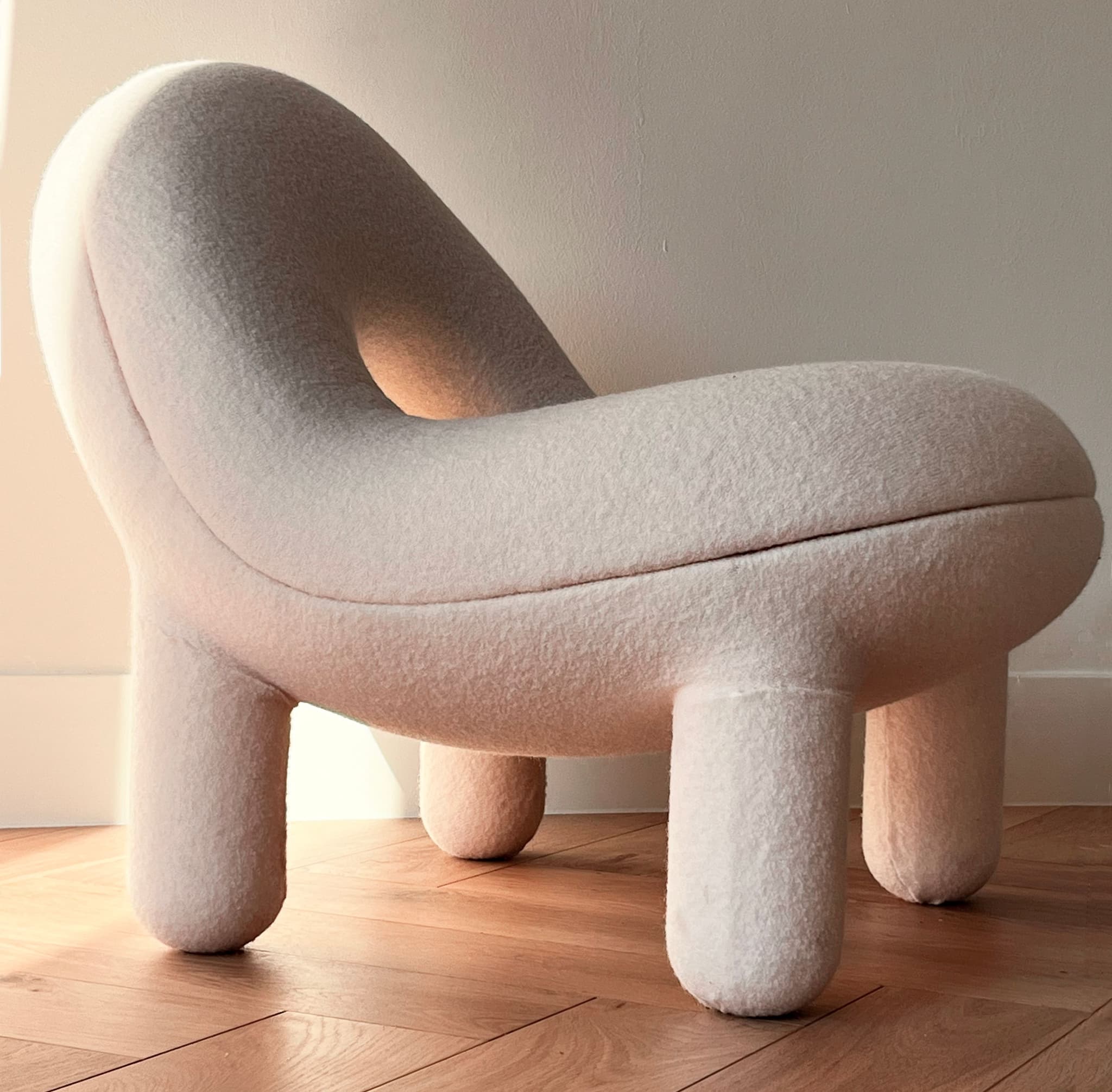

Designing the Beba Chair with my daughter Aila presented two key challenges. The collaboration happened a bit accidentally. I was deep into a research project on making furniture efficiently remanufactured at an industrial level. This got me thinking about how to create a simple yet professional method for removing and replacing upholstery. When Aila asked me what I was working on, I explained the difficulty of designing a removable upholstery for a continuous chair construction, where the seat and back are in one form. The upholstery tends to pop off unless it's permanently glued or visibly fastened, which I wanted to avoid.
I had envisioned a clamping mechanism through a central design component but was struggling with integrating it seamlessly. So, I gave Aila a clump of clay and asked her to take a stab at it. What she created was brilliant—a natural blend of form and function. I’ve often worked collaboratively, but was surprised that this time it was with my child.
The biggest challenge was the design itself. The technical solution was mapped out, but it needed to be compelling. I often compare this to storytelling: two people can tell the same story, but the way they tell it makes all the difference. One person might recount it in a dull, monotonous way that fails to capture anyone’s interest, while another might bring it to life with vivid descriptions, engaging details, and a captivating pace. It’s the same plot, but one version keeps you on the edge of your seat while the other puts you to sleep. Similarly, our design had to be not just functional but also engaging and appealing, ensuring it resonated with people on both a practical and an emotional level.
Technically, I hypothesised and tested the design first on a 1/8th scale model, then on a nearly full-size prototype, and finally through several full-scale iterations. Despite some tinkering with tolerances, the idea worked. I've been fortunate—or experienced enough—to come up with novel ideas that work as envisioned when applied in reality.
In the end, the project wasn't just about overcoming technical hurdles. It was about blending creativity with practicality.
Could you provide more details on the technical mechanism of how the fabric is clamped and held in place within the Beba Chair design?

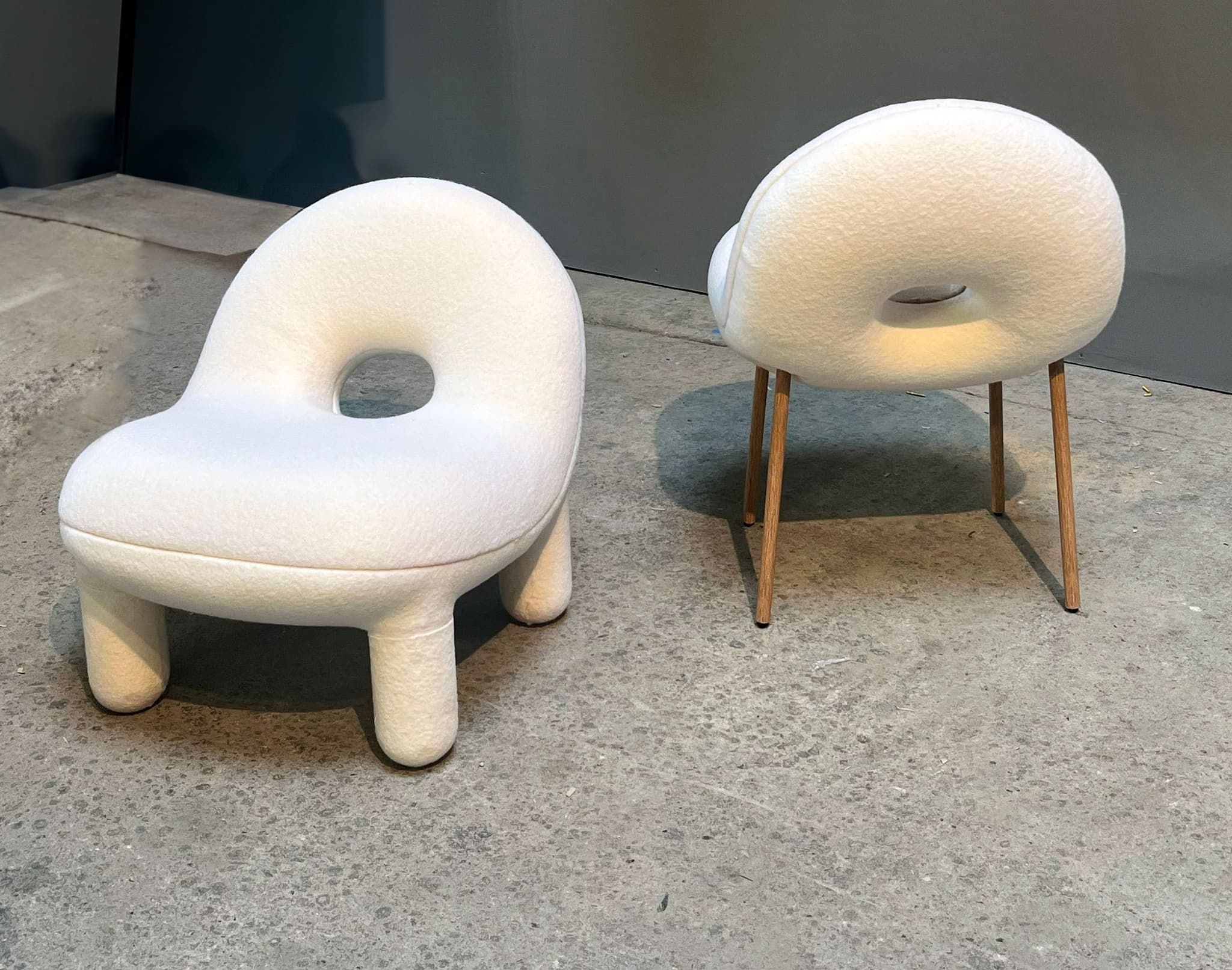

The mechanism features a patent-pending design that utilises two different applications: one for dining chairs and another for lounge chairs. Both versions incorporate shells with internal grooves running along the entire perimeter, including around the central hole. The upholstery is secured by grippy piping that is friction-fitted into these grooves.
For dining chairs, the legs are screwed into internal threads in the top shell through the bottom shell. This not only secures the two sides together firmly but also effectively clamps the fabric in place, preventing any potential slippage.
When creating technical drawings for the Beba Chair, what software tools and techniques do you use to ensure precision and manufacturability?
The data went on a bit of a journey. Initially, a rough model was created in Solidworks to outline the general dimensions, shape, and functional elements. Following this, dough made from flour and water was used to sculpt and simulate the pillowing forms, which were then video-scanned. Both the Solidworks model and the scanned references were used as guides to create the soft forms in 3ds Max.
Subsequently, this data was imported back into Solidworks as surfaces and re-traced to generate solid objects suitable for printing or tooling purposes. During this phase, technical and ergonomic elements were incorporated, along with the addition of groove elements and leg cradles. The design was intended for moulding, with careful consideration given to the mould release angles in the Solidworks data.
The iterative process from conceptual modelling to digital sculpting and solid object creation in Solidworks allowed for the integration of functional and aesthetic considerations. The final design was optimised for manufacturing efficiency and ergonomic comfort, ensuring compatibility with the moulding process through meticulous attention to detail in the Solidworks environment.
Can you detail the engineering behind the Float Chair's removable upholstery system, specifically the clamping mechanism and fabric tensioning?
The fabric tensioning is engineered into the design using precise patterns and the strategic use of flexible, slightly stretchable fabric and fluffy, compressible webbing.
What adds an intriguing twist is the deep grooves in the chair structure, designed to securely hold the perimeter piping through friction. This allows for adjustable clamping depths tailored to specific requirements, ensuring a snug and aesthetically pleasing fit.
Have you used finite element analysis (FEA) in your design process, particularly for structural components of furniture? If so, how has it informed your designs?
Absolutely, finite element analysis (FEA) has been instrumental in my furniture design process, especially for structural components in furniture. It's an invaluable tool for predicting how furniture will withstand real-life forces. I've utilised FEA to determine the optimal material thickness for metal tubing, assess the required hardware for joints, and calculate the necessary depth of support structures to ensure reliable durability.
FEA not only helps in optimising designs but also serves as a powerful tool to digitally demonstrate the structural integrity of a concept. This capability is crucial for gaining buy-in from clients, as it provides a clear and visual representation of how the furniture will perform under various conditions.
Furniture prototypes are significant investments in terms of both cost and logistics. FEA allows me to simulate and validate designs digitally before committing to physical prototypes, thereby saving time and resources while ensuring that the final product meets performance standards.
How do you incorporate ergonomic principles into your furniture designs, and what specific ergonomic tests do you conduct?
In developing the Beba chair, I analysed measurement data from numerous existing chairs, overlaying them onto the 3D model. This process enabled me to fine-tune the design by adjusting its dimensions to meet established ergonomic standards. While I haven't integrated ergonomic simulations directly into the data yet, it's a priority for the future.
Throughout the development, we crafted several full-size prototypes that underwent testing with individuals of varying sizes. The advantage of utilising 3D printing for production is clear here — you can iterate and refine each print, without the constraints imposed by traditional mould costs. With each print, I gain valuable insights that contribute to ongoing improvements.
Rather than pursuing perfection, my focus lies on continuous enhancement. Gathering feedback from every print allows me to continuously refine and elevate the chair's design.
